pureikyubu — the software GFX pipeline

The two pipelines

The shader backend maps the two programmable stages of the Flipper onto the two programmable stages of OpenGL (the XF onto a vertex shader, the TEV onto a fragment shader) and lets GL rasterize. The software pipeline walks the whole pipeline itself, in the same modules (xf.cpp, su.cpp, ras.cpp, tx.cpp, tev.cpp, pe.cpp), with the software methods of a block carrying the Soft prefix. The two paths share no rendering state, which is what makes the pipeline a configuration variable rather than a compile-time choice — it can be switched on the fly, and the choice is written back to the settings file.

Setting	Meaning
`hardware.GFX_PIPELINE`	`0` = the shader (OpenGL) backend, `1` = the software pipeline. Read at start-up.
`gxpipeline`	The debugger / JDI command: reports the active pipeline or switches it (`gxpipeline soft`, `gxpipeline shader`). The switch takes effect on the next frame and is stored in the settings.

Gekko --PI FIFO--> CP --commands--> XF(soft) --> SU(soft) --> RAS(soft) --> TEV(soft) --> PE(soft)
                                                                 ^            ^
                                                         TX(soft, TMEM)      |
                                                                             v
                                                             EFB memory --(copy engine)--> XFB
                                                                                             |
                                                                                     vi.cpp scans it out

The blocks

XF — the transform

A high-level transformation of the vertex, not an interpreter of the XF microcode: the geometry and texture matrix multiplies, the projection combine, the per-vertex lighting of the two channels and the texture coordinate generation (regular, colour and the dual transform). The bottom of the pipe then divides by the homogeneous component and maps the result through the viewport registers into window space — EFB pixels with the origin at the top left corner, a 24-bit depth and 1/w for the perspective correction of the rasterizers.

SU — the setup

The primitive assembler and the setup stage. Points, lines, strips, fans and the Flipper quads become triangles, and every triangle gets the record the rasterizer walks with: the bounding box, the three edge coefficients and the interpolation plane of every attribute. The perspective-correct parameters are carried as planes of value/w next to the plane of 1/w — the division the hardware performs at the pixel centres.

RAS — the quad walk

The rasterizers walk the primitive the way the hardware does: on the 2×2-pixel quad grid, one quad at a time, with a 12-bit coverage mask (three sub-samples per pixel) and the top-left rule on the shared edges. Only the pixels with a covered sub-sample are shaded, at their centre or at one of their covered sub-samples. The sub-sample positions come from GEN_MSLOC0..3.

TX — a real TMEM

The 32 banks of 16K × 16-bit words of the texture memory, in the two 512 KB halves. TX_LOADBLOCK0..3 and TX_LOADTLUT0/1 stream main-memory tiles and palette entries into it, hardware-managed images are fetched through a tag cache in it, and the sampler follows the LOD computation, the clamp / repeat / mirror coordinate operations and the filter datapath: all the texel formats including the colour-index ones through the TLUT, bilinear S/T lerps with 6-bit fractions and the trilinear blend.

TEV — the combine

The stage datapath, run per shaded sample: up to 16 combine stages over the colour register file, the Rev-B K constants, the alpha compare modes, the Z-texture environment, the fog unit and the final alpha function.

PE — the EFB and the XFB

A real EFB memory array, addressed like the CPU window of the hardware (the colour word of the pixel (x, y) sits at y * 1024 + x, the address bit 22 selects the Z plane). It performs the Z test, the blend and the logic ops with the write masks, and the copy engine: the display copy that turns a rectangle into the packed YUV 4:2:2 XFB in main memory, the texture copy into the tiled texture formats, and the clear a copy may ask for.

What it draws

The pictures below are rendered by the unit tests and published into the test report. The first one is a scene the software pipeline drew in the order a title would submit it: a full-screen quad with a colour gradient (the four-corner interpolation of the colour rasterizer), a triangle whose vertex colours interpolate across it, a red quad that is nearer than the triangle — the Z unit rejects the samples behind it — and a quad whose texels are read out of TMEM.

A scene rendered by the software GFX pipeline

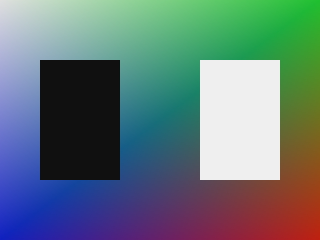

The second one is the same frame after GXCopyDisp: the copy engine converted the EFB rectangle into packed YUV 4:2:2 in main memory, and this is that XFB decoded back to RGB. The chroma of every pixel pair is averaged by the 4:2:2 downsampling, which is why the edges of the two rectangles show a chroma transition.

The XFB the copy engine wrote, decoded back to RGB

The tests drive the hardware API, not the backend

testing/gfx_soft_test.cpp programs the pipeline the way the console is programmed: the XF register space (the geometry matrix, the projection combine and the viewport registers, exactly the registers GXSetProjection / GXSetViewport write), the bypass register space (the shared GEN registers, the rasterizer texture bindings, the texture load commands, the TEV stage environments and the pixel engine state) and object-space vertices. What it reads back is the hardware's own output: the EFB memory of the pixel engine and the XFB the copy engine wrote. No OpenGL call is involved — the software pipeline never opens a GL context.

cd scripts/VS2026
MSBuild pureikyubu_test.vcxproj -p:Configuration=Debug -p:Platform=x64
vstest.console.exe x64/Debug/pureikyubu_test.dll /Tests:Soft_

What is not there yet

Implemented

The XF transform and viewport mapping, the setup (planes and edges, culling, zfreeze), the quad walk with the 12-bit coverage masks and the scissor, the perspective-correct interpolation of the colours and the texture coordinates, the level of detail and the point / bilinear / trilinear filtering out of TMEM (all texel formats, the TLUT, CMPR), the 16-stage TEV combine with the K constants, the Z-texture environment, the fog and the alpha function, the EFB Z test / blend / logic ops / write masks / constant alpha, and the copy engine's clear, display copy (XFB) and texture copy.

Not implemented (yet)

The indirect (bump) texturing of the TEV; the anisotropic filtering and the diag_lod / lodclamp refinements; the round and field_predict motion-compensation modes; the anti-aliased EFB (a 12-bit coverage mask selects the sample to shade, but the EFB stores one colour per pixel) and the EFB pixel types other than RGB8 — which is also why the dither matrix is not applied, since for RGB8 it is the identity; the vertical filter coefficients of the display copy and the YUV/4:2:0 copy modes; and the EFB CPU window (Cpu2Efb).

Documentation

Wiki: Software GFX

The whole page: the blocks, the specification each one is written from, the model's deliberate choices and what is still missing.

Wiki: GFX

The shader backend: the vertex and fragment programs, the textures, the indirect texturing and the JDI commands.

The specifications

The hardware pages the software pipeline is written from: gfx-xf.md, gfx-su.md, gfx-ras0/1/2.md, gfx-tc.md, gfx-tf.md, gfx-tev.md, gfx-pe.md and video-interface.md.

The software GFX pipeline (experimental)
