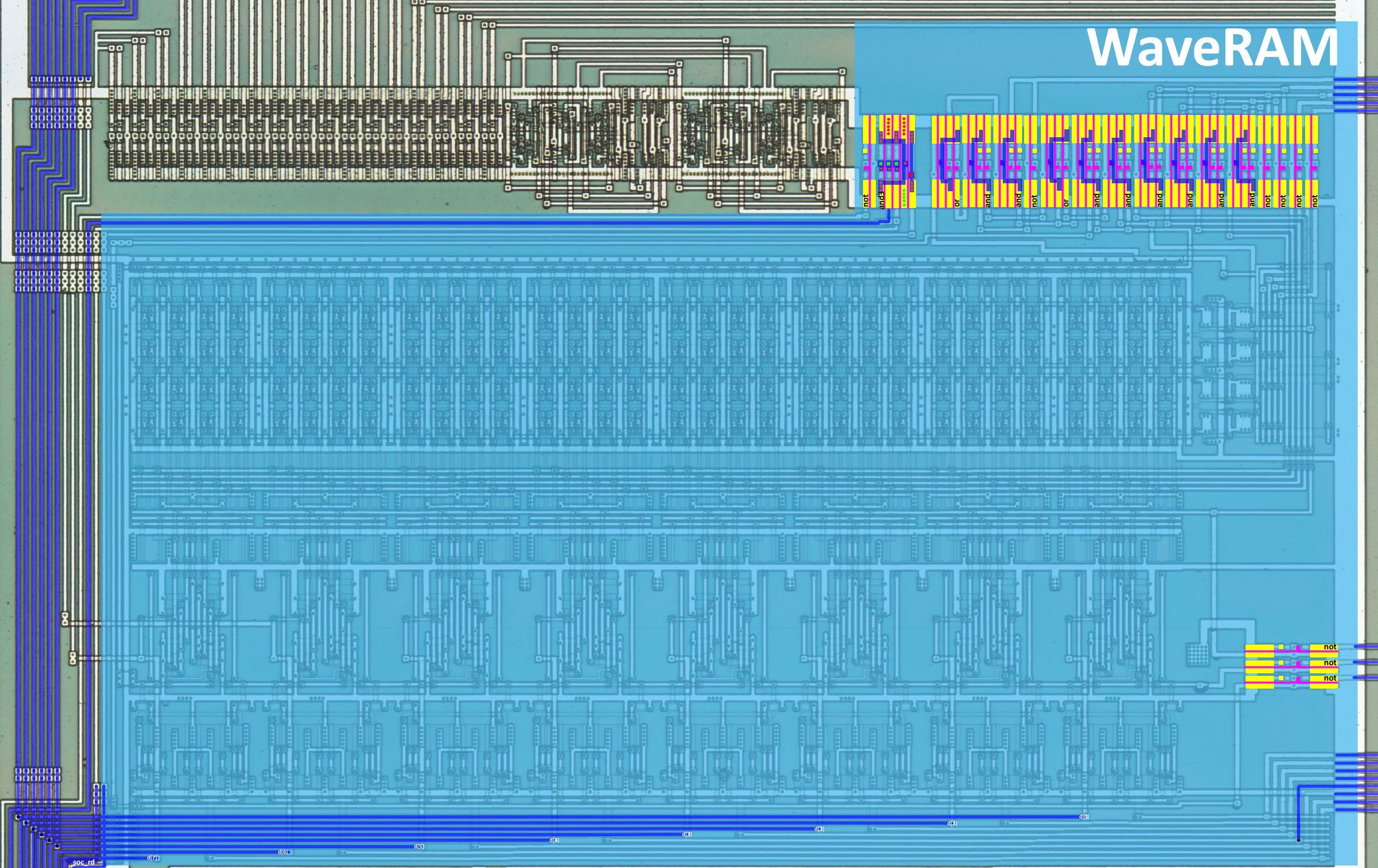

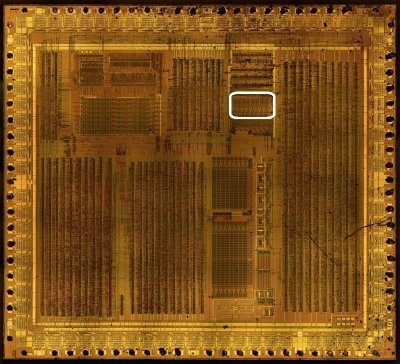

Wave RAM
Signals
| Signal Name | Direction | From / Where To | Description |
|---|---|---|---|
| [3:0] a | Input | From APU | Wave RAM address (16 bytes, wave_a) |
| active | Input | From APU | Wave channel (CH3) active enable (ch3_active) |
| bl_pch | Input | From APU | Bitline precharge (wave_bl_pch) |
| n_rd | Input | From APU | Read enable (active low, n_wave_rd); output via dout |
| n_wr | Input | From APU | Write enable (active low, n_wave_wr); input via d |
| [7:0] d | Bidir | Global | SoC internal data bus (CPU write/read access) |
| [7:0] dout | Output | To APU | Wave RAM data output for CH3 playback (wave_rd) |
