Reference DMG PCB

Used for design verification.

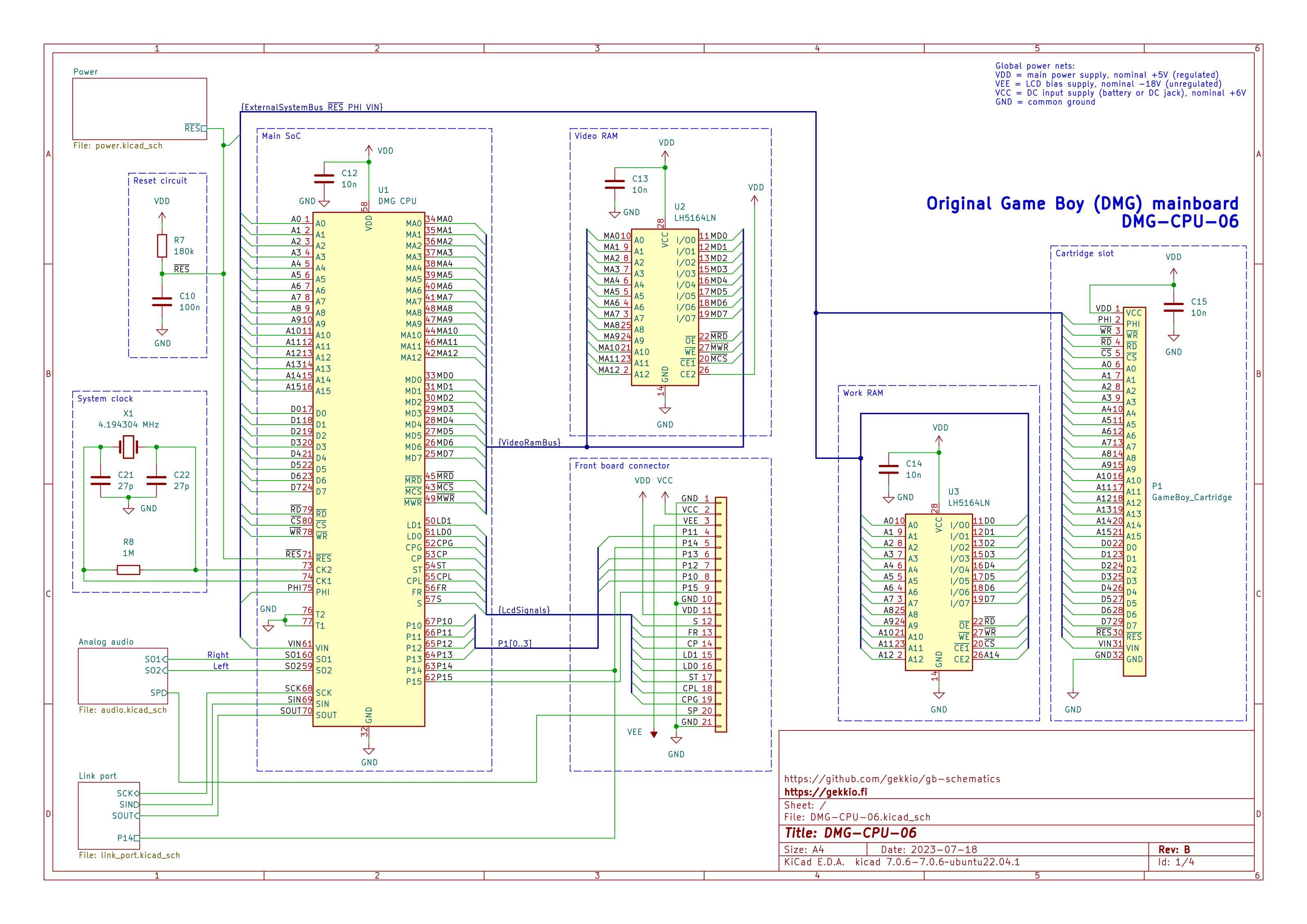

DMG-CPU-06 motherboard netlist has been reconstructed from @Gekkio's image:

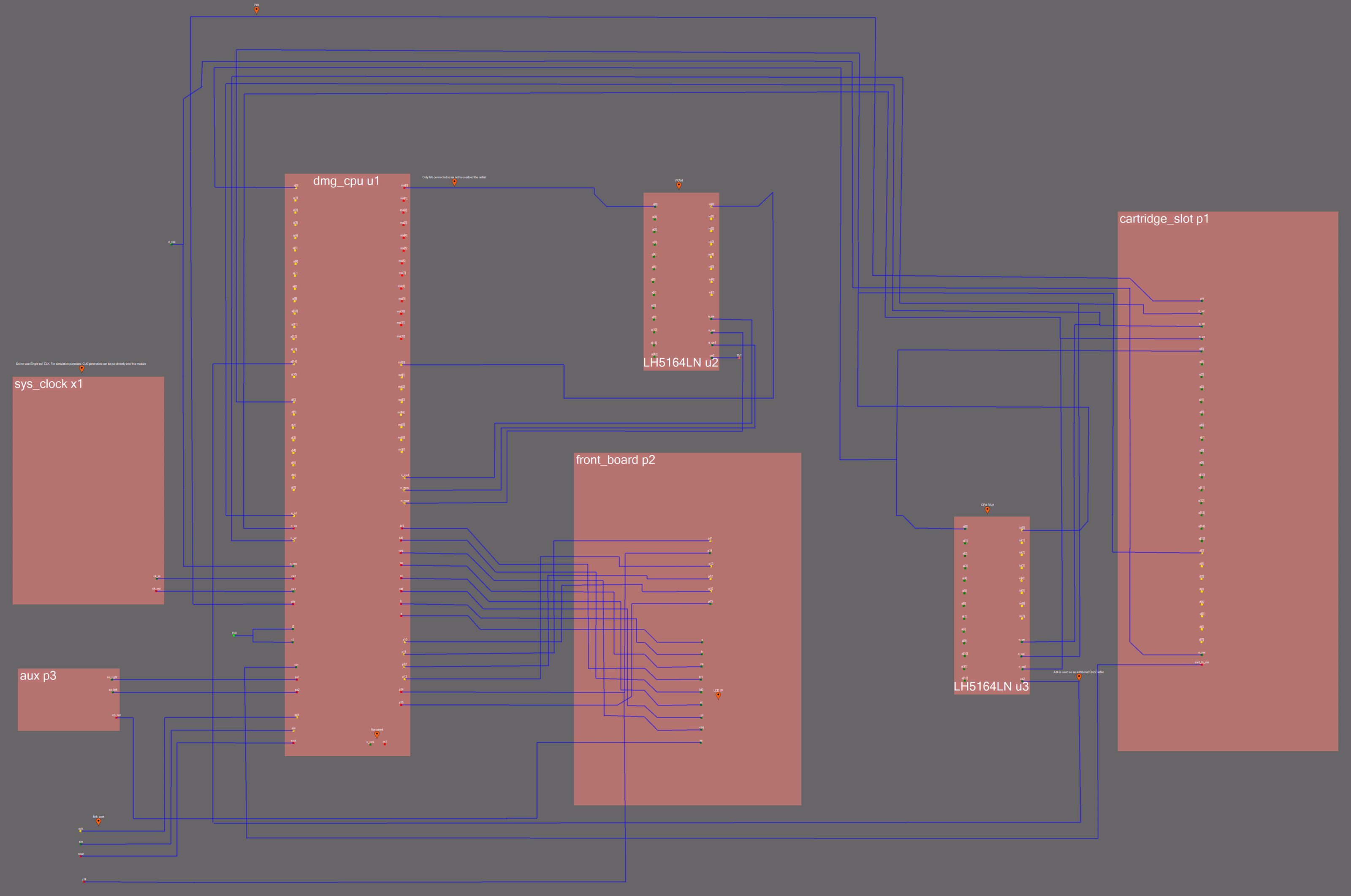

Netlist:

Verilog model:

// DMG-CPU-06 PCB netlist
// Original image by @Gekkio (https://github.com/Gekkio/gb-schematics/blob/main/DMG-CPU-06/schematic/DMG-CPU-06.pdf)

module dmg_pcb (  sin, sout, sck, n_res, p14);

    input wire sin;
    output wire sout;
    inout wire sck;
    input wire n_res;
    output wire p14;

    // Wires

    wire w1;
    wire w2;
    wire w3;
    wire w4;
    wire w5;
    wire w6;
    wire w7;
    wire w9;
    wire w11;
    wire w12;
    wire w13;
    wire [12:0] w14;        // MA
    wire [7:0] w15;         // MD
    wire w16;
    wire w17;
    wire w18;
    wire w19;
    wire w20;
    wire w21;
    wire w22;
    wire w23;
    wire w24;
    wire w25;
    wire w26;
    wire w27;
    wire [15:0] w28;        // A
    wire [7:0] w29;     // D
    wire w31;
    wire w32;
    wire w33;
    wire w34;
    wire w35;
    wire w36;
    wire w37;
    wire w38;

    assign w6 = sin;
    assign sout = w7;
    assign sck = w5;
    assign w9 = n_res;
    assign p14 = w25;

    // Instances

    pcb_dmg_cpu u1 (.d(w29), .md(w15), .sck(w5), .sin(w6), .sout(w7), .so1(w3), .so2(w4), .ck1(w1), .ck2(w2), .n_res(w9), .a(w28), .ma(w14), .n_rd(w35), .n_cs(w37), .n_wr(w36), .phi(w27),
        .t1(1'b0), .t2(1'b0), .cpg(w21), .cp(w20), .cpl(w18), .fr(w17), .ld0(w23), .ld1(w24), .s(w16), .st(w19), .p14(w25), .p15(w26), .p10(w31), .p11(w32), .p12(w33), .p13(w34), .n_mrd(w11), .n_mcs(w12), .n_mwr(w13), .vin(w38) );
    pcb_sys_clock x1 (.ck_out(w1), .ck_in(w2) );
    pcb_LH5164LN u2 (.a(w14), .n_ce1(w12), .ce2(1'b1), .n_we(w13), .n_oe(w11), .io(w15) );
    pcb_front_board p2 (.p10(w31), .p11(w32), .p13(w34), .p12(w33), .p14(w25), .p15(w26), .s(w16), .fr(w17), .cp(w20), .ld1(w24), .ld0(w23), .st(w19), .cpl(w18), .cpg(w21), .sp(w22) );
    pcb_cartridge_slot p1 (.n_res(w9), .phi(w27), .n_wr(w36), .n_rd(w35), .n_cs(w37), .a(w28), .d(w29), .cart_to_vin(w38) );
    pcb_aux p3 (.so_right(w3), .so_left(w4), .sp_out(w22) );
    pcb_LH5164LN u3 (.a(w28[12:0]), .n_ce1(w37), .ce2(w28[14]), .n_we(w36), .n_oe(w35), .io(w29) );
endmodule // dmg_pcb

// Module Definitions [It is possible to wrap here on your primitives]

module pcb_dmg_cpu (  d, md, sck, sin, sout, so1, so2, ck1, ck2, n_res, a, ma, n_rd, n_cs, n_wr, phi,
    t1, t2, cpg, cp, cpl, fr, ld0, ld1, s, st, p14, p15, p10, p11, p12, p13, n_mrd, n_mcs, n_mwr, vin, n_nmi, m1);

    inout wire [7:0] d;
    inout wire [7:0] md;
    inout wire sck;
    inout wire sin;
    output wire sout;
    output wire so1;
    output wire so2;
    input wire ck1;
    output wire ck2;
    input wire n_res;
    inout wire [15:0] a;
    output wire [12:0] ma;
    inout wire n_rd;
    output wire n_cs;
    inout wire n_wr;
    output wire phi;
    input wire t1;
    input wire t2;
    output wire cpg;
    output wire cp;
    output wire cpl;
    output wire fr;
    output wire ld0;
    output wire ld1;
    output wire s;
    output wire st;
    output wire p14;
    output wire p15;
    inout wire p10;
    inout wire p11;
    inout wire p12;
    inout wire p13;
    inout wire n_mrd;
    inout wire n_mcs;
    inout wire n_mwr;
    input wire vin;
    input wire n_nmi;
    output wire m1;

endmodule // pcb_dmg_cpu

module pcb_sys_clock (  ck_out, ck_in);

    output wire ck_out;
    input wire ck_in;

endmodule // pcb_sys_clock

module pcb_LH5164LN (  a, n_ce1, ce2, n_we, n_oe, io);

    input wire [12:0] a;
    input wire n_ce1;
    input wire ce2;
    input wire n_we;
    input wire n_oe;
    inout wire [7:0] io;

endmodule // pcb_LH5164LN

module pcb_front_board (  p10, p11, p13, p12, p14, p15, s, fr, cp, ld1, ld0, st, cpl, cpg, sp);

    inout wire p10;
    inout wire p11;
    inout wire p13;
    inout wire p12;
    input wire p14;
    input wire p15;
    input wire s;           // Common display sync signal (VSync). Used as input value for the Y-Driver shift register
    input wire fr;          // LCD alterating signal; FR is used to stop the LCD plating out (destroying the LCD material with DC), it inverts the drivers
    input wire cp;
    input wire ld1;
    input wire ld0;
    input wire st;
    input wire cpl;         // Signal data latch signal. Used as CLK for Y-Driver chip
    input wire cpg;
    input wire sp;

endmodule // pcb_front_board

module pcb_cartridge_slot (  n_res, phi, n_wr, n_rd, n_cs, a, d, cart_to_vin);

    input wire n_res;
    input wire phi;
    input wire n_wr;
    input wire n_rd;
    input wire n_cs;
    input wire [15:0] a;
    inout wire [7:0] d;
    output wire cart_to_vin;

endmodule // pcb_cartridge_slot

module pcb_aux (  so_right, so_left, sp_out);

    input wire so_right;
    input wire so_left;
    output wire sp_out;

endmodule // pcb_aux
