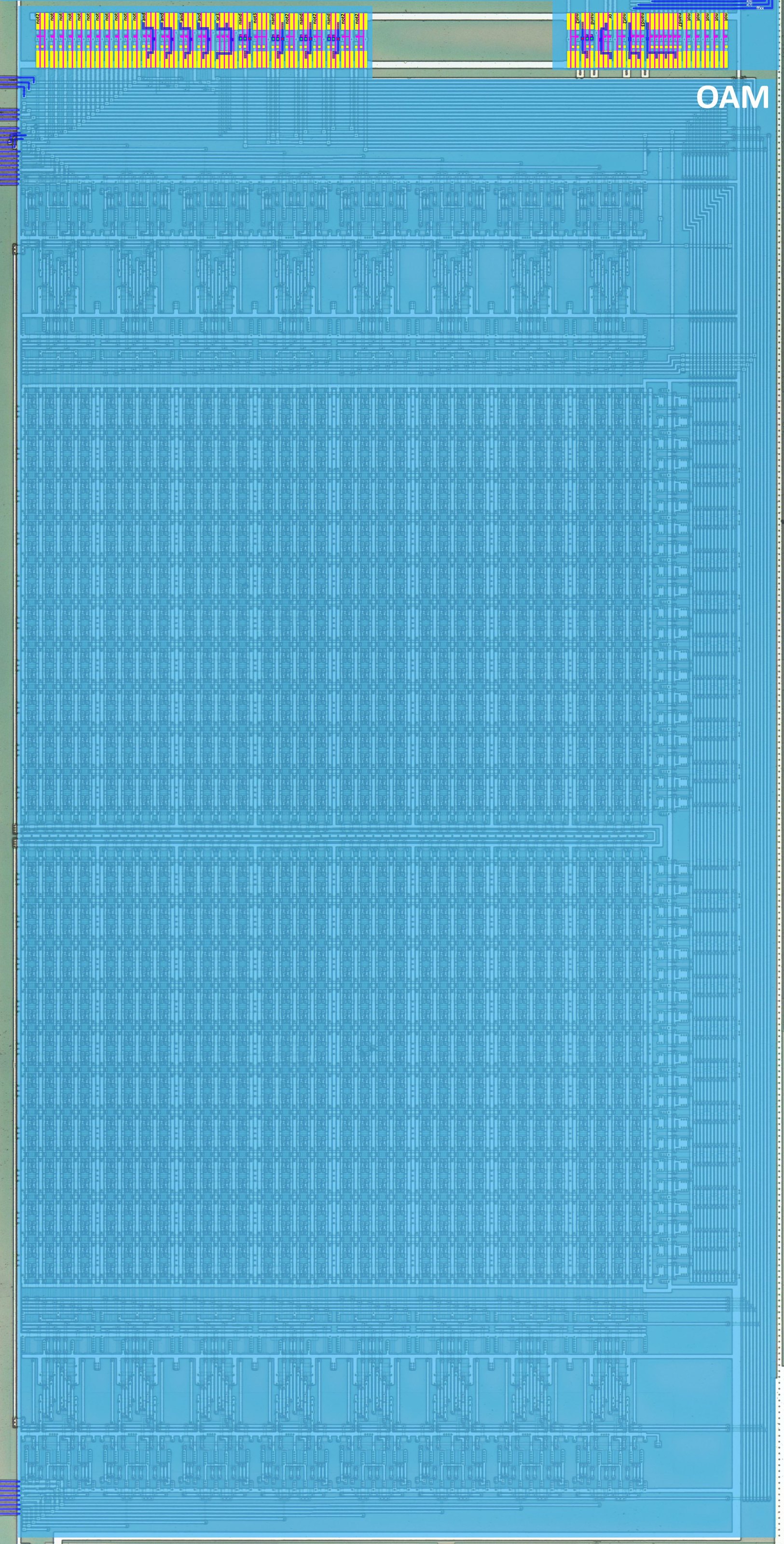

OAM

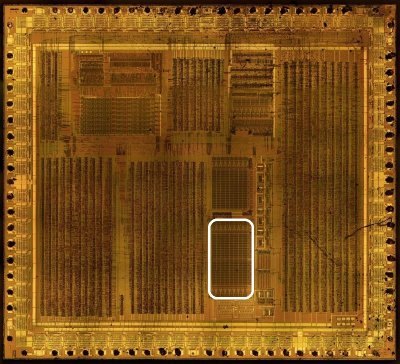

locator_oam

oam

Signals

oam_ports

Signal Name	Direction	From / Where To	Description
n_oam_rd	Input	From PPU2	OAM read enable (active low)
n_oama_wr	Input	From PPU2	OAM port A write enable (active low)
n_oamb_wr	Input	From PPU2	OAM port B write enable (active low)
[7:1] oa	Input	From PPU2	OAM address bus (bit 0 is not used, lsb=1)
oam_bl_pch	Input	From PPU2	OAM bitline precharge
[7:0] n_oama	Bidir	To/From PPU2	OAM port A data bus (inverse hold)
[7:0] n_oamb	Bidir	To/From PPU2	OAM port B data bus (inverse hold)

OAM is a dual-port SRAM. Port A and port B are both controlled by PPU2; it is assumed that port A serves the CPU/DMA side (write access via oam_din/oam_dma_wr) and port B serves the PPU renderer itself, but this needs verification. See also the Buses table.
