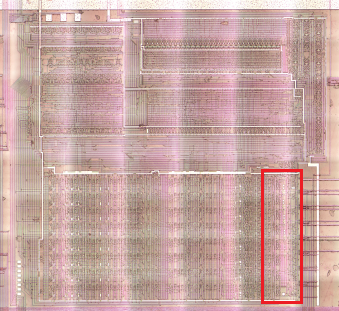

Bottom Right (IRQ) Logic

The IRQ logic consists of the following parts:

• IE
• IF
• Priority encoder
• "Breadcrumps"

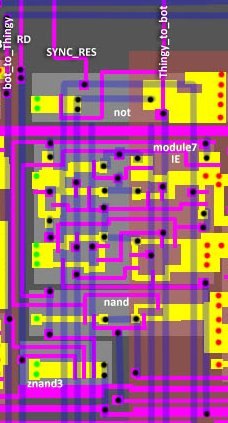

IE

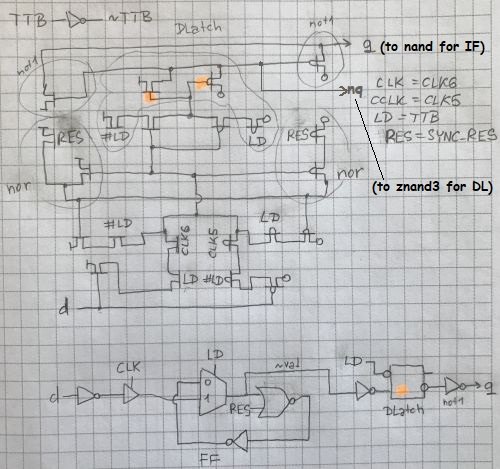

Latch (no CLK edge detection, yes ld edge detection) with reset.

IF

Program access ($FFFE) to the IF in the DMG CPU has been removed.

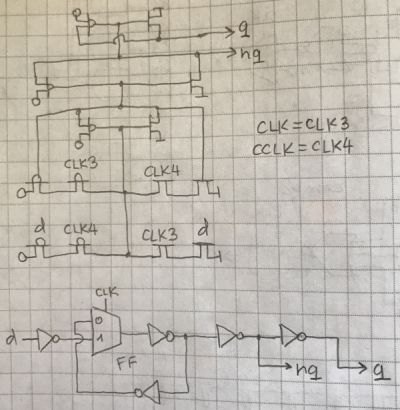

It is a regular (transparent) latch (no edge detection), to store the interrupt flag.

Breadcrumps

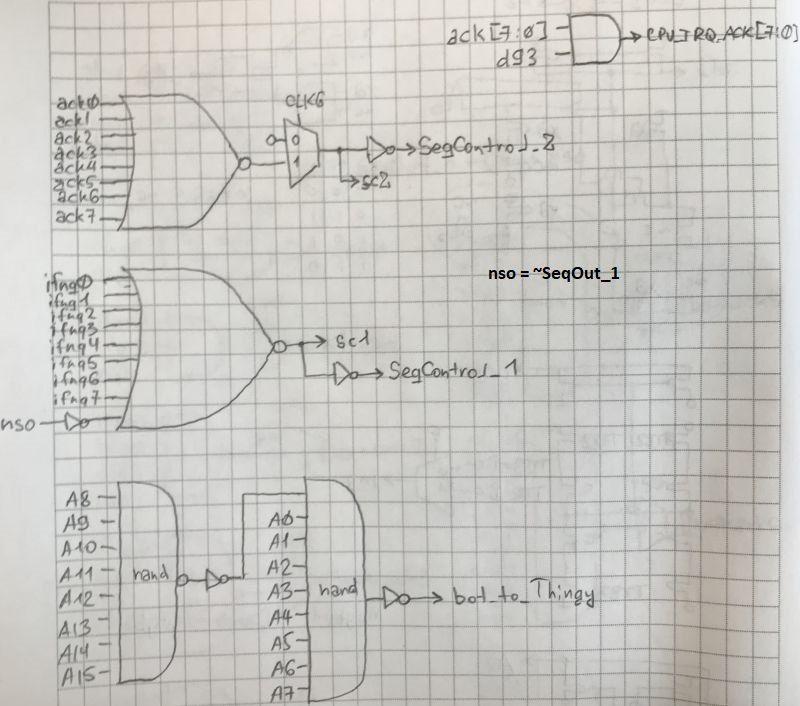

I never tire of repeating: dear chip designers - please do not spread the logic this way, because it is difficult to cut it into pieces and post pictures on the wiki. Therefore, I will not give pictures of the topology here - see the general big picture of the bottom part. Pieces of "Breadcrumped" circuits are marked with different colors.

• breadcrumped nor-9 (cyan): sc1 (Any interrupt)
• breadcrumped aoi (green): sc2 (Priority encoder)
• breadcrumped nand-9 (white): A0-A7 + AddrHi -> bot_to_Thingy (Addr = 0xffff)
• breadcrumped nand-8 (red): A8-A15 (AddrHi)
• breadcrumped nor-4 (x3): bro3, bro4, bro5 (Interrupt address)

Logic:

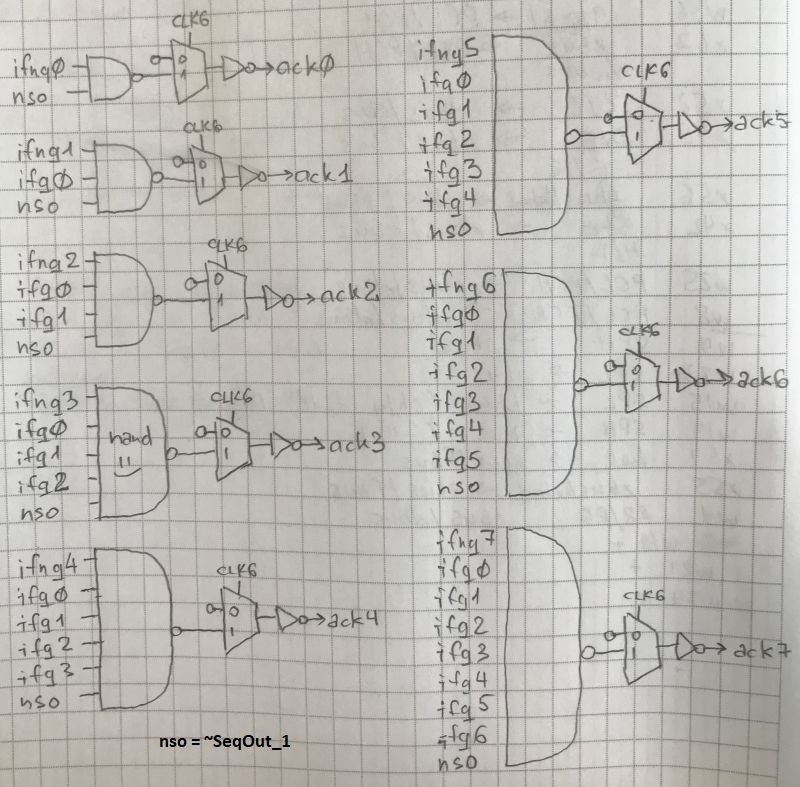

Priority encoder:

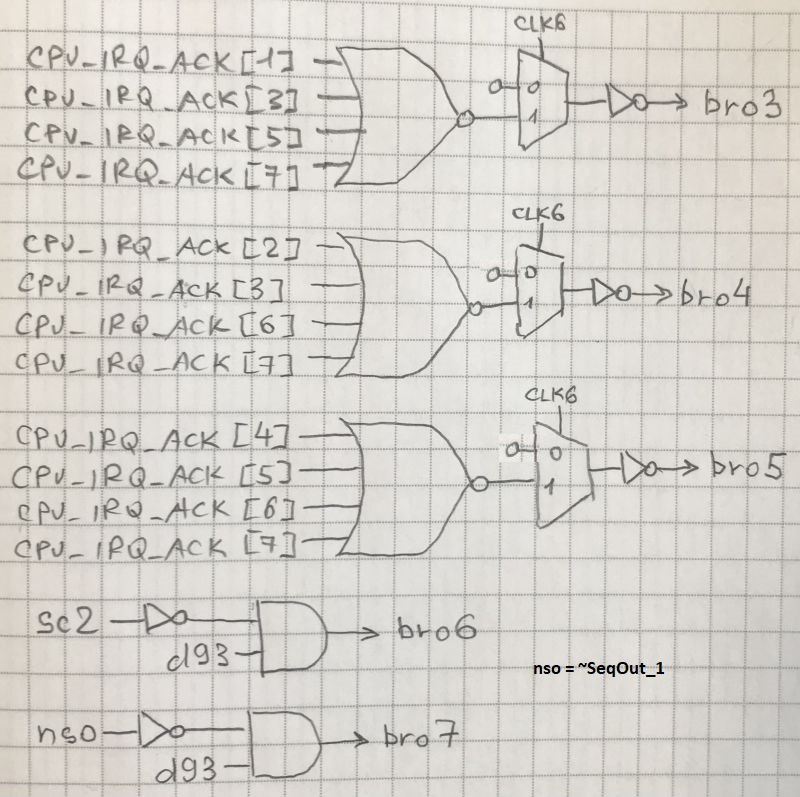

Interrupt address:
