Decoder3

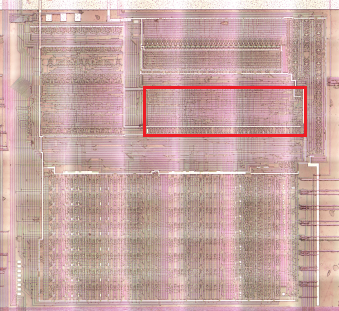

locator_decoder3

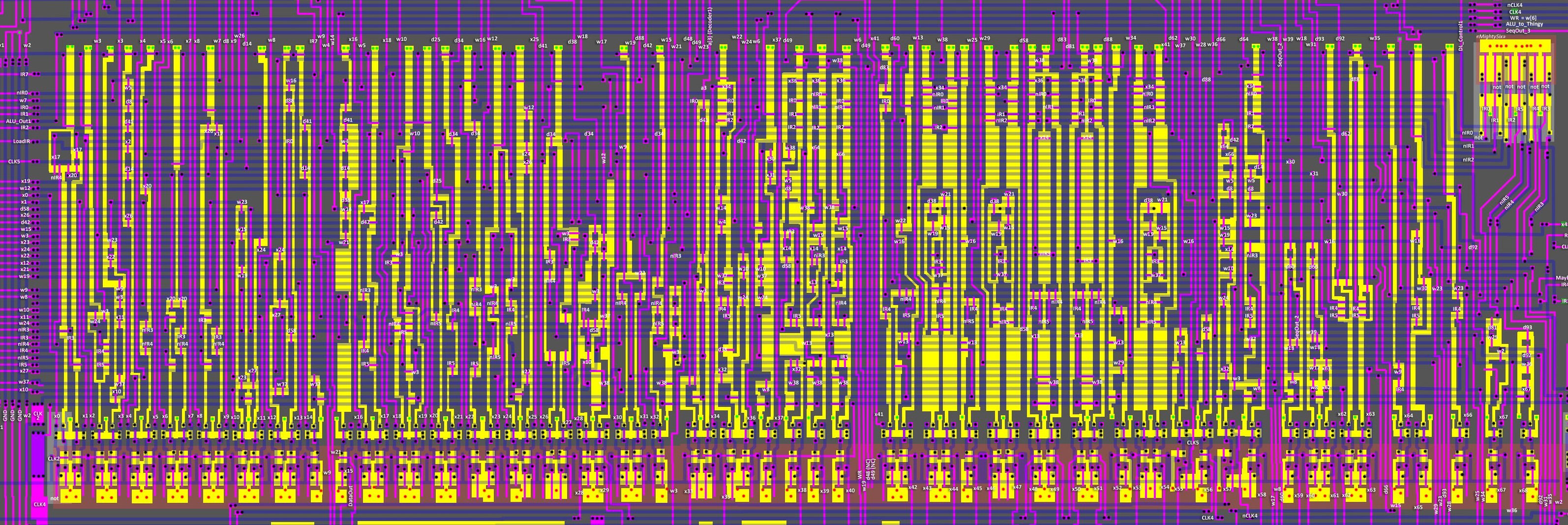

The final stage of the decoder, which generates the x[68:0] control signals for the lower part and the ALU.

decoder3

Decoder3 Inputs

Signal From
CLK2 External
CLK4 External
CLK5 External. Affects x55
nCLK4 CLK4 Not. Affects x57
a3 Decoder1 a[3] input
d Decoder1 outputs
w Decoder2 outputs
IR Bottom
nIR IR Nots
SeqOut_2 Sequencer

IR Nots

ir_nots

Output Drivers

decoder3_drv

The output drivers act as signal amplifiers and are also used as "domino" logic, to translate dynamic CMOS logic into conventional logic.

Decoder3 Outputs

Output Name CLK To Description
x0 CLK2 ALU Bot
x1 CLK2 ALU Bot
x2 CLK2 internal
x3 CLK2 ALU Top
x4 CLK2 ALU module2
x5 CLK2 ALU AND combs
x6 CLK2 ALU AND combs
x7 CLK2 ALU AND combs
x8 CLK2 ALU AND combs
x9 CLK2 ALU AND combs
x10 CLK2 ALU Bot
x11 CLK2 ALU Bot
x12 CLK2 ALU Bot
x13 CLK2 internal
x14 CLK2 internal
x15 DataOut ⚠️ CLK4 Data Bridge DV to DL
x16 CLK2 ALU AND combs
x17 CLK2 internal
x18 CLK2 ALU Top
x19 CLK2 ALU Bot, ALU module2
x20 CLK2 internal
x21 CLK2 ALU Bot
x22 CLK2 ALU Bot
x23 CLK2 ALU Bot
x24 CLK2 ALU Bot
x25 CLK2 ALU module2
x26 CLK2 ALU Bot
x27 CLK2 ALU Bot
x28 ⚠️ CLK4 ALU Bot Res
x29 ⚠️ CLK4 ALU Bot Res
x30 CLK2 internal
x31 CLK2 internal
x32 CLK2 internal
x33 CLK2 Bottom Set abus to 0
x34 CLK2 internal
x35 CLK2 Bottom Save A to bbus
x36 CLK2 internal
x37 DL_Control2, ALU_to_DL ⚠️ CLK4 Data Latch 1: Save ALU result to DataLatch
x38 ⚠️ CLK4 Bottom Load A from fbus
x39 ⚠️ CLK4 Bottom Load H from fbus
x40 ⚠️ CLK4 Bottom Load L from ebus
x41 CLK2 Sequencer
x42 CLK2 Bottom H/L to dbus/cbus
x43 CLK2 Bottom Save H to bbus
x44 CLK2 Bottom Save L to bbus
x45 CLK2 Bottom D/E to dbus/cbus
x46 CLK2 Bottom Save D to bbus
x47 CLK2 Bottom Save E to bbus
x48 ⚠️ CLK4 Bottom Load D from fbus
x49 ⚠️ CLK4 Bottom Load B from fbus
x50 ⚠️ CLK4 Bottom Load E from ebus
x51 ⚠️ CLK4 Bottom Load C from ebus
x52 CLK2 Bottom B/C to dbus/cbus
x53 CLK2 Bottom Save B to bbus
x54 CLK2 Bottom Save C to bbus
x55 CLK2 Bottom ⚠️ Affected by CLK5 (output is nor(res,CLK5) instead not(res). adl/adh -> ebus/fbus
x56 ⚠️ CLK4 Bottom TempLow(G)/TempHigh(K) to ebus/fbus
x57 CLK2 Bottom ⚠️ Affected by nCLK4 (output is nor(res,nCLK4) instead not(res). ALU Res to ebus/fbus
x58 CLK2 Bottom Save TempLow(G) to bbus
x59 CLK2 Bottom Load TempHigh(K)
x60 CLK2 Bottom Load TempLow(G)
x61 LoadSP CLK2 Bottom (twice) Load SP Register. The signals x62 and x63 indicate exactly what to load.
x62 CLK2 Bottom adl/adh to SPL/SPH
x63 CLK2 Bottom zbus/wbus to SPL/SPH
x64 CLK2 internal
x65 CLK2 Bottom SPL/SPH to cbus/dbus
x66 CLK2 internal
x67 CLK2 Bottom adl/adh to PCL/PCH
x68 LoadPC CLK2 Bottom (twice) Load PC Register. The signals w36 (⚠️ w36!) and x67 indicate exactly what to load.

(Outputs not marked as internal can still be used internally, I just did not mark it unnecessarily).

Nand Trees

Tree Gekkio Paths
x0 alu_rotate_shift_left {nIR3,x20}
{nIR3,nIR4,x17}
x1 alu_rotate_shift_right {IR3,x20}
{IR3,x17}
x2 alu_set_or {w24}
{IR5,IR4,nIR3,w3}
x3 alu_sum {x10}
{w37}
{x11}
{w8}
{w9}
{x22}
{w23}
x4 alu_logic_or {w5}
{d8}
{d41}
{x2}
{d14}
{x26}
x5 alu_rlc {x20,nIR3,nIR4}
x6 alu_rl {x20,nIR3,IR4}
x7 alu_rrc {x20,IR3,nIR4}
x8 alu_rr {x20,IR3,IR4}
x9 alu_sra {x17,IR3,nIR4}
x10 alu_sum_pos_hf_cf {w23}
{w15}
{w19}
{x23}
x11 alu_sum_neg_cf {x27}
{x24}
x12 alu_sum_neg_hf_nf {x24}
{x27}
{IR0,w37}
x13 regpair_wren {d58}
{d88}
{w16}
x14 alu_to_reg {d41}
{d14}
{w37}
x15 oe_rbus_to_pbus {w6,d41}
{w6,w4}
{w6,d14}
{w6,d38}
{w6,w14}
{w6,w21}
x16 alu_swap {x17,nIR3,IR4}
x17 cb_20_to_3f {d42,IR5}
x18 alu_xor {w3,IR3,nIR4,IR5}
x19 alu_logic_and {w10}
{nIR3,nIR4,IR5,w3}
x20 rotate {d25}
{d42,nIR5}
x21 alu_ccf_scf {d34,IR4,IR5}
x22 alu_daa {d34,nIR3,nIR4,IR5}
x23 alu_add_adc {w3,nIR4,nIR5}
x24 alu_sub_sbc {w3,IR4,nIR5}
x25 alu_b_complement {w12}
{x24}
{x26}
{x27}
x26 alu_cpl {d34,IR3,nIR4,IR5}
x27 alu_cp {w3,IR3,IR4,IR5}
x28 wren_cf {d34,w38}
{d42,w38}
{w3,w38}
{IR4,IR5,d58,w38}
{x10,w38}
x29 wren_hf_nf_zf {w12,w38}
{x28,w38}
{w37,w38}
x30 op_add_sp_e_sx10 {w9,nIR4}
x31 op_add_sp_e_s001 {w23,nIR4}
x32 op_alu_misc_a {d34,nIR4}
{d34,nIR5}
x33 op_dec8 {IR0,w37}
x34 alu_reg_to_rbus {w3}
{d41}
{a3}
x35 oe_areg_to_rbus {x34,IR0,IR1,IR2}
{w14}
{w4}
{w37,IR3,IR4,IR5}
{d38,IR4,IR5}
{x32}
x36 cb_wren_r {d42}
{w10}
{w24}
x37 oe_alu_to_pbus {w8}
{w6,d42}
{w6,w10}
{w6,w37}
{w6,w24}
{x30}
{x31}
x38 wren_a {x32,w38}
{x36,IR0,IR1,IR2,w38}
{w38,d8}
{w38,w5}
{w38,x14,IR3,IR4,IR5}
{w38,d58,IR4,IR5}
{w38,w3,nIR5}
{w38,w3,nIR4}
{w38,w3,nIR3}
x39 wren_h {IR5,w13,w38}
{x36,nIR0,nIR1,IR2,w38}
{w38,x64}
{w38,w19}
{w38,x14,nIR3,nIR4,IR5}
{w38,x13,nIR4,IR5}
x40 wren_l {IR5,w13,w38}
{x36,IR0,nIR1,IR2,w38}
{w38,x66}
{w38,w15}
{w38,x14,IR3,nIR4,IR5}
{w38,x13,nIR4,IR5}
x41 op_reti_s011 {d83,IR0,IR4}
x42 oe_hlreg_to_idu {w13,IR5}
{w16,nIR4,IR5}
{w22}
x43 oe_hreg_to_rbus {x34,nIR0,nIR1,IR2}
{IR5,nIR4,d38}
{IR5,nIR4,w19}
{IR5,nIR4,nIR3,w37}
x44 oe_lreg_to_rbus {x34,IR0,nIR1,IR2}
{IR5,nIR4,w21}
{IR5,nIR4,w15}
{IR5,nIR4,IR3,w37}
x45 oe_dereg_to_idu {IR4,nIR5,w16}
{IR4,nIR5,w13}
x46 oe_dreg_to_rbus {x34,nIR0,IR1,nIR2}
{nIR5,IR4,d38}
{nIR5,IR4,w19}
{nIR5,IR4,nIR3,w37}
x47 oe_ereg_to_rbus {x34,IR0,IR1,nIR2}
{nIR5,IR4,w21}
{nIR5,IR4,w15}
{nIR5,IR4,IR3,w37}
x48 wren_d {x36,nIR0,IR1,nIR2,w38}
{IR4,nIR5,x13,w38}
{IR4,nIR5,x14,nIR3,w38}
x49 wren_b {x36,nIR0,nIR1,nIR2,w38}
{nIR4,nIR5,x13,w38}
{nIR4,nIR5,x14,nIR3,w38}
x50 wren_e {x36,IR0,IR1,nIR2,w38}
{IR4,nIR5,x13,w38}
{IR4,nIR5,x14,IR3,w38}
x51 wren_c {x36,IR0,nIR1,nIR2,w38}
{nIR4,nIR5,x13,w38}
{nIR4,nIR5,x14,IR3,w38}
x52 oe_bcreg_to_idu {w29}
{nIR4,nIR5,w13}
{nIR4,nIR5,w16}
x53 oe_breg_to_rbus {x34,nIR0,nIR1,nIR2}
{nIR4,nIR5,d38}
{nIR4,nIR5,w19}
{nIR4,nIR5,nIR3,w37}
x54 oe_creg_to_rbus {x34,IR0,nIR1,nIR2}
{nIR4,nIR5,w21}
{nIR4,nIR5,w15}
{nIR4,nIR5,IR3,w37}
x55 oe_idu_to_uhlbus {w13}
{w16}
x56 oe_wzreg_to_uhlbus {d58}
{d88}
x57 oe_ubus_to_uhlbus {d42}
{x64}
{x66}
{w5}
{d8}
{w15}
{w19}
{x14}
{w10}
{w24}
{x32}
{w3}
x58 oe_zreg_to_rbus {w8}
{nIR3,IR4,IR5,w37}
{w23}
{d8}
{w5}
{d14}
{x34,nIR0,IR1,IR2}
x59 wren_w {x30}
{d60}
{w18,SeqOut_2}
{w8}
x60 wren_z {w8}
{w17}
{w39,w18}
{d60}
{x31}
x61 wren_sp {x62}
{x63}
x62 oe_idu_to_spreg {w16,IR4,IR5}
{w30}
{d62}
x63 oe_wzreg_to_spreg {d88,IR4,IR5}
{d64}
x64 op_ld_hl_sp_e_s010 {w9,IR4}
x65 oe_spreg_to_idu {w30}
{w16,IR4,IR5}
x66 op_ld_hl_sp_e_s001 {w23,IR4}
x67 oe_idu_to_pcreg {d81}
{w25}
{w2}
x68 wren_pc {d93}
{d92}
{w36}
{x67}
