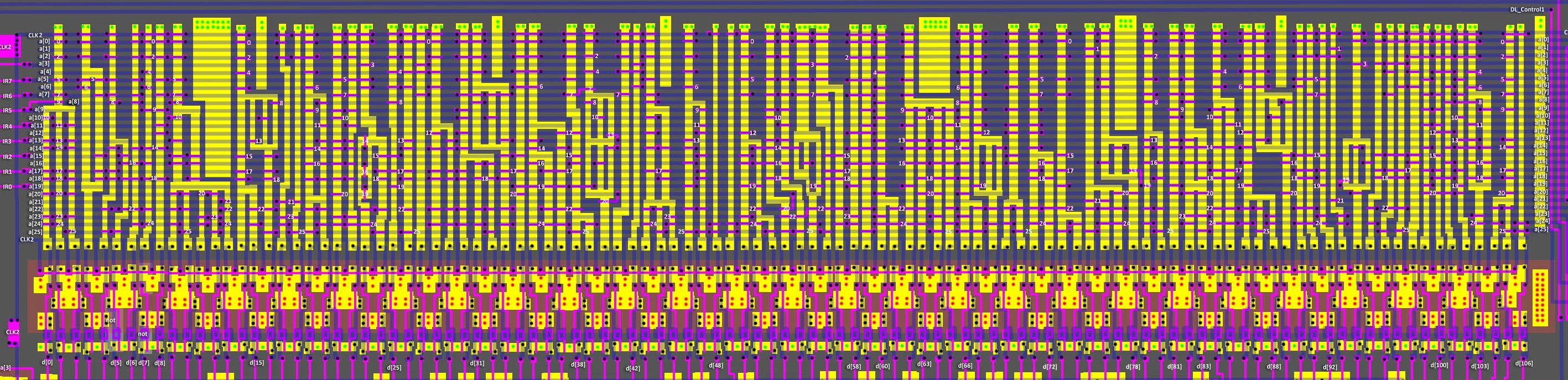

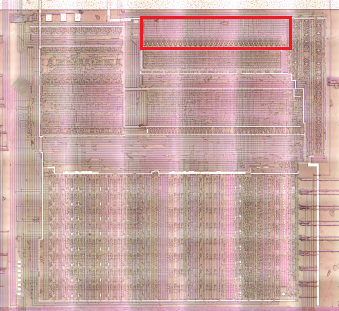

Decoder1
Decoder1 makes a preliminary decoding of the operation code, which will then be refined in Decoder2.
Topology features:
- Each decoder output is a branched NAND
- The output of a whole NAND tree can be
0only when all inputs of at least one "branch" are equal to1. - During CLK = 0 a Precharge is made
- During CLK = 1 an operation (Eval) is committed
- Value is inverted by regular CMOS inverter
Dynamic logic is used.
Decoder1 Inputs
| Input | From | Gekkio | Meaning |
|---|---|---|---|
| a0 | Inplace | ~a1 | |
| a1 | Sequencer | intr_dispatch | 1: IRQ sequence in progress |
| a2 | Inplace | ~a3 | |
| a3 | Sequencer | cb_mode | 1: CB Opcode prefix |
| a4 | Inplace | ~a5 | |
| a5 | IR | IR[7] | |
| a6 | Inplace | ~a7 | |
| a7 | IR | IR[6] | |
| a8 | Inplace | ~a9 | |
| a9 | IR | IR[5] | |
| a10 | Inplace | ~a11 | |
| a11 | IR | IR[4] | |
| a12 | Inplace | ~a13 | |
| a13 | IR | IR[3] | |
| a14 | Inplace | ~a15 | |
| a15 | IR | IR[2] | |
| a16 | Inplace | ~a17 | |
| a17 | IR | IR[1] | |
| a18 | Inplace | ~a19 | |
| a19 | IR | IR[0] | |
| a20 | Sequencer | ~state[2] (state3 msb, inverted) | 0: state2 active |
| a21 | Inplace | ~a20 | |
| a22 | Sequencer | ~state[1] | 0: state1 active |
| a23 | Inplace | ~a22 | |
| a24 | Sequencer | ~state[0] (state3 lsb, inverted) | 0: state0 active |
| a25 | Inplace | ~a24 |
Decoder1 Output Drivers
The output drivers act as signal amplifiers and are also used as "domino" logic, to translate dynamic CMOS logic into conventional logic.
Decoder1 Output Trees
⚠️ Some inputs are twisted, be careful (e.g. a9 for the first three values).
| Tree | Gekkio | Paths | To | Description |
|---|---|---|---|---|
| d0 | op_ld_nn_a_s010 | {0,2,5,7,9,10,13,14,17,18,20,23,24} | ||
| d1 | op_ld_a_nn_s010 | {0,2,5,7,9,11,13,14,17,18,20,23,24} | ||
| d2 | op_ld_a_nn_s011 | {0,2,5,7,9,11,13,14,17,18,20,23,25} | ||
| d3 | op_alu8 | {0,2,({5,6},{5,7,15,17,18})} | All ALU opcodes in range 0x80-0xbf + ALU opcodes 0xc6/0xce, 0xd6/0xde, 0xe6/0xee, 0xf6/0xfe ("bottom yellow") | |
| d4 | op_jp_cc_sx01 | {0,2,5,7,8,14,17,18,22,25} | ||
| d5 | op_call_cc_sx01 | {0,2,5,7,8,15,16,18,22,25} | ||
| d6 | op_ret_cc_sx00 | {0,2,5,7,8,14,16,18,22,24} | ||
| d7 | op_jr_cc_sx00 | {0,2,4,6,9,14,16,18,22,24} | ||
| d8 | op_ldh_a_x | {0,2,5,7,9,11,12,14,18} | Decoder3 (not used in Decoder2) | |
| d9 | op_call_any_s000 | {0,2,5,7,8,({10,13,15,16},{15,16,18}),20,22,24} | ||
| d10 | op_call_any_s001 | {0,2,5,7,8,({10,13,15,16},{15,16,18}),20,22,25} | ||
| d11 | op_call_any_s010 | {0,2,5,7,8,({10,13,15,16},{15,16,18}),20,23,24} | ||
| d12 | op_call_any_s011 | {0,2,5,7,8,({10,13,15,16},{15,16,18}),20,23,25} | ||
| d13 | op_call_any_s100 | {0,2,5,7,8,({10,13,15,16},{15,16,18}),21,22,24} | ||
| d14 | op_ld_x_n | {0,2,4,6,15,17,18} | Decoder3 (not used in Decoder2) | LD reg/(HL),d8 |
| d15 | op_ld_x_n_sx00 | {0,2,4,6,15,17,18,22,24} | ||
| d16 | op_ld_r_n_sx01 | {0,2,4,6,({13},{10},{8}),15,17,18,22,25} | ||
| d17 | op_s110 | {0,2,21,23,24} | ||
| d18 | op_s111 | {2,21,23,25} | ||
| d19 | op_jr_any_sx01 | {0,2,4,6,({9,14,16,18},{8,11,13,14,16,18}),22,25} | ||
| d20 | op_jr_any_sx00 | {0,2,4,6,({9,14,16,18},{8,11,13,14,16,18}),22,24} | ||
| d21 | op_add_sp_e_s010 | {0,2,5,7,9,10,13,14,16,18,20,23,24} | ||
| d22 | op_ld_hl_sp_sx10 | {0,2,5,7,9,11,13,14,16,18,23,24} | ||
| d23 | cb_res_r_sx00 | {0,3,5,6,({14},{16},{19}),22,24} | ||
| d24 | cb_res_hl_sx01 | {0,3,5,6,15,17,18,22,25} | ||
| d25 | op_rotate_a | {0,2,4,6,8,15,17,19} | Decoder3 (not used in Decoder2) | Rotate instructions (RLCA/RRCA/RLA/RRA) |
| d26 | op_ld_a_rr_sx01 | {0,2,4,6,13,14,17,18,22,25} | ||
| d27 | cb_bit | {0,3,4,7} | ||
| d28 | op_ld_rr_a_sx00 | {0,2,4,6,12,14,17,18,22,24} | ||
| d29 | op_ld_a_rr_sx00 | {0,2,4,6,13,14,17,18,22,24} | ||
| d30 | op_ldh_c_a_sx00 | {0,2,5,7,9,10,12,14,17,18,22,24} | ||
| d31 | op_ldh_n_a_sx00 | {0,2,5,7,9,10,12,14,16,18,22,24} | ||
| d32 | op_ldh_n_a_sx01 | {0,2,5,7,9,10,12,14,16,18,22,25} | ||
| d33 | op_ld_r_hl_sx00 | {0,2,4,({7,8},{7,10},{7,13}),15,17,18,22,24} | ||
| d34 | op_alu_misc_s0xx | {0,2,4,6,15,17,19,20} | Decoder3 (also) | All rotate and flag opcodes (x7/xF) in range 0x00-0x3f |
| d35 | op_add_hl_sxx0 | {0,2,4,6,13,14,16,19,24} | All ADD HL,r16 opcodes (0x09,0x19,0x29,0x39) | |
| d36 | op_dec_rr_sx00 | {0,2,4,6,13,14,17,19,22,24} | ||
| d37 | op_inc_rr_sx00 | {0,2,4,6,12,14,17,19,22,24} | ||
| d38 | op_push_sx01 | {0,2,5,7,12,15,16,19,22,25} | Decoder3 (also) | Push opcodes (0xc5,0xd5,0xe5,0xf5) |
| d39 | op_push_sx00 | {0,2,5,7,12,15,16,19,22,24} | ||
| d40 | op_ld_r_r_s0xx | {0,2,4,7,({8},{10},{13}),({19},{16},{14}),20} | All LD opcodes in range 0x40-0x7f, except using (HL) and HALT. | |
| d41 | op_40_to_7f | {0,2,4,7} | Decoder3 (not used in Decoder2) | All LD reg/(HL), (HL)/reg, including HALT (in range 0x40-0x7f) |
| d42 | cb_00_to_3f | {0,3,4,6} | Decoder3, ALU, Bottom (not used in Decoder2) | Pop opcodes (0xc1, 0xd1, 0xe1, 0xf1) |
| d43 | op_jp_any_sx00 | {0,2,5,7,8,({10,12,14,17},{14,17,18}),22,24} | ||
| d44 | op_jp_any_sx01 | {0,2,5,7,8,({10,12,14,17},{14,17,18}),22,25} | ||
| d45 | op_jp_any_sx10 | {0,2,5,7,8,({10,12,14,17},{14,17,18}),23,24} | ||
| d46 | op_add_hl_sx01 | {0,2,4,6,13,14,16,19,22,25} | ||
| d47 | op_ld_hl_n_sx01 | {0,2,4,6,9,11,12,15,17,18,22,25} | ||
| d48 | ignored | {24,25} | ⚠️ Not used | |
| d49 | ignored | {24,25} | ⚠️ Not used | |
| d50 | op_push_sx10 | {0,2,5,7,12,15,16,19,23,24} | ||
| d51 | op_pop_sx00 | {0,2,5,7,12,14,16,19,22,24} | ||
| d52 | op_pop_sx01 | {0,2,5,7,12,14,16,19,22,25} | ||
| d53 | op_add_sp_s001 | {0,2,5,7,9,10,13,14,16,18,20,22,25} | ||
| d54 | op_ld_hl_sp_sx01 | {0,2,5,7,9,11,13,14,16,18,22,25} | ||
| d55 | cb_set_r_sx00 | {0,3,5,7,({14},{16},{19}),22,24} | ||
| d56 | cb_set_hl_sx01 | {0,3,5,7,15,17,18,22,25} | ||
| d57 | cb_set_res_hl_sx00 | {0,3,5,15,17,18,22,24} | ||
| d58 | op_pop_sx10 | {0,2,5,7,12,14,16,19,23,24} | ALU (also) | |
| d59 | op_ldh_a_n_sx01 | {0,2,5,7,9,11,12,14,16,18,22,25} | ||
| d60 | op_ld_nn_sp_s010 | {0,2,4,6,8,10,13,14,16,18,20,23,24} | Bottom (also) | |
| d61 | op_ld_nn_sp_s000 | {0,2,4,6,8,10,13,14,16,18,20,22,24} | ||
| d62 | op_ld_sp_hl_sx00 | {0,2,5,7,9,11,13,14,16,19,22,24} | Decoder3 (also) | |
| d63 | op_add_sp_e_s000 | {0,2,5,7,9,10,13,14,16,18,20,22,24} | ||
| d64 | op_add_sp_e_s011 | {0,2,5,7,9,10,13,14,16,18,20,23,25} | Decoder3 (also) | |
| d65 | op_ld_hl_sp_sx00 | {0,2,5,7,9,11,13,14,16,18,22,24} | ||
| d66 | op_ld_nn_sp_s011 | {0,2,4,6,8,10,13,14,16,18,20,23,25} | ||
| d67 | op_ld_nn_sp_s001 | {0,2,4,6,8,10,13,14,16,18,20,22,25} | ||
| d68 | op_ld_hl_r_sx00 | {0,2,4,7,9,11,12,({19},{16},{14}),22,24} | ||
| d69 | op_incdec8_hl_sx00 | {0,2,4,6,9,11,12,15,16,22,24} | ||
| d70 | op_incdec8_hl_sx01 | {0,2,4,6,9,11,12,15,16,22,25} | ||
| d71 | op_ldh_a_c_sx00 | {0,2,5,7,9,11,12,14,17,18,22,24} | ||
| d72 | op_ldh_a_n_sx00 | {0,2,5,7,9,11,12,14,16,18,22,24} | ||
| d73 | op_rst_sx01 | {0,2,5,7,15,17,19,22,25} | ||
| d74 | op_rst_sx00 | {0,2,5,7,15,17,19,22,24} | ||
| d75 | int_s101 | {1,2,21,22,25} | ||
| d76 | int_s100 | {1,2,21,22,24} | ||
| d77 | int_s000 | {1,2,20,22,24} | ||
| d78 | op_80_to_bf_reg_s0xx | {0,2,5,6,({16},{14},{19}),20} | ||
| d79 | op_ret_reti_sx00 | {0,2,5,7,8,13,14,16,19,22,24} | ||
| d80 | op_ret_cc_sx01 | {0,2,5,7,8,14,16,18,22,25} | ||
| d81 | op_jp_hl_s0xx | {0,2,5,7,9,10,13,14,16,19,20} | ||
| d82 | op_ret_any_reti_s010 | {0,2,5,7,8,({13,14,16},{14,16,18}),20,23,24} | ||
| d83 | op_ret_any_reti_s011 | {0,2,5,7,8,({13,14,16},{14,16,18}),20,23,25} | Decoder3 (also) | |
| d84 | op_ld_hlinc_sx00 | {0,2,4,6,9,10,14,17,18,22,24} | ||
| d85 | op_ld_hldec_sx00 | {0,2,4,6,9,11,14,17,18,22,24} | ||
| d86 | op_ld_rr_sx00 | {0,2,4,6,12,14,16,19,22,24} | ||
| d87 | op_ld_rr_sx01 | {0,2,4,6,12,14,16,19,22,25} | ||
| d88 | op_ld_rr_sx10 | {0,2,4,6,12,14,16,19,23,24} | Decoder3 (also). Long wire. | |
| d89 | op_incdec8_s0xx | {0,2,4,6,({13},{10},{8}),15,16,20} | ||
| d90 | op_alu_hl_sx00 | {0,2,5,6,15,17,18,22,24} | ||
| d91 | op_alu_n_sx00 | {0,2,5,7,15,17,18,22,24} | ||
| d92 | op_rst_sx10 | {0,2,5,7,15,17,19,23,24} | Bottom (also) | |
| d93 | int_s110 | {1,2,21,23,24} | Decoder3, Bottom (also) | |
| d94 | cb_r_s0xx | {0,3,({19},{14},{16}),20} | ||
| d95 | cb_hl_sx00 | {0,3,15,17,18,22,24} | ||
| d96 | cb_bit_hl_sx01 | {0,3,4,7,15,17,18,22,25} | ||
| d97 | cb_notbit_hl_sx01 | {0,3,6,15,17,18,22,25} | ||
| d98 | op_incdec8 | {0,2,4,6,15,16} | INC/DEC reg/(HL) | |
| d99 | op_di_ei_s0xx | {0,2,5,7,9,11,14,17,19,20} | Sequencer (also) | |
| d100 | op_halt_s0xx | {0,2,4,7,9,11,12,15,17,18,20} | Sequencer (also) | |
| d101 | op_nop_stop_s0xx | {0,2,4,6,8,12,14,16,18,20} | Sequencer (also) | NOP/STOP |
| d102 | op_cb_s0xx | {0,2,5,7,8,10,13,14,17,19,20} | Sequencer (also) | |
| d103 | op_jr_any_sx10 | {0,2,4,6,({8,11,13,14,16,18},{9,14,16,18}),23,24} | ||
| d104 | op_ea_fa_s000 | {0,2,5,7,9,13,14,17,18,20,22,24} | ||
| d105 | op_ea_fa_s001 | {0,2,5,7,9,13,14,17,18,20,22,25} | ||
| d106 | ignored | {24,25} | ⚠️ Not used |
The numbers in the tree path mark the inputs a[25:0].

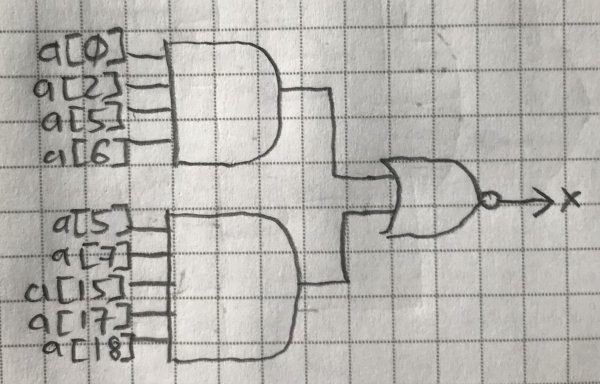

The result should be as follows (using d3 as an example, the dynamical part of the logic is not shown):
The To outputs are marked only for those that go somewhere else besides Decoder2.
To convert trees into a schematic, you can use a script to generate an HDL.
